產品描述

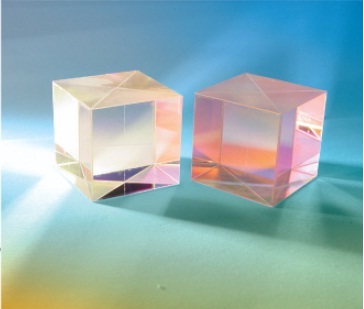

能量分光棱鏡是由兩個直角棱鏡膠合而成，棱鏡的斜面鍍介質膜，所有的入射和出射面鍍?cè)鐾改ぁ?/span>
應用
●光學系統
產品優點
●高精度
●寬波長范圍
產品指標
波長 | T/R | 尺寸 Φ25.4x2mm | 尺寸 Φ12.7x2mm |
532 | T/R=50/50±2% | CBS-532-50-01 | CBS-532-50-02 |
632 | T/R=50/50±2% | CBS-632-50-01 | CBS-632-50-02 |
670 | T/R=50/50±3% | CBS-670-50-01 | CBS-670-50-02 |
780 | T/R=50/50±3% | CBS-780-50-01 | CBS-780-50-02 |
1064 | T/R=50/50±3% | CBS-1064-50-01 | CBS-1064-50-02 |
1310 | T/R=50/50±3% | CBS-1310-50-01 | CBS-1310-50-02 |
400-700 | T/R=50/50±3% | CBS-VIS-50-01 | CBS-VIS-50-02 |
659-900 | T/R=50/50±3% | CBS-650-900-50-01 | CBS-650-900-50-02 |
900-1200 | T/R=50/50±3% | CBS-900-1200-50-01 | CBS-900-1200-50-02 |
1200-1600 | T/R=50/50±3% | CBS-900-1200-50-01 | CBS-900-1200-50-02 |
