產品描述
消偏振棱鏡要求S偏振光和P偏振光透過率差值在6% 以內。
應用
●醫療成像
●測量設備
產品優點
●材料 : H-K9L, 石英
●表面光圈: λ/4
●光束偏轉: <3’
●光潔度: 60-40
●鍍膜指標: T/R=48/48±5%, ITs-TpI<5%, IRs-RpI<5%
入射角0°
產品指標
波長(nm) | T/R | 尺寸 12.7x12.7x12.7mm | 尺寸 25.4x25.4x25.4mm |
488 | T/R=48/48±5% ITs-TpI<5% IRs-RpI<5% | NPBS-488-01 | NPBS-488-02 |
532 | T/R=48/48±5% ITs-TpI<5% IRs-RpI<5% | NPBS-532-01 | NPBS-532-02 |
808 | T/R=48/48±5% ITs-TpI<5% IRs-RpI<5% | NPBS-808-01 | NPBS-808-02 |

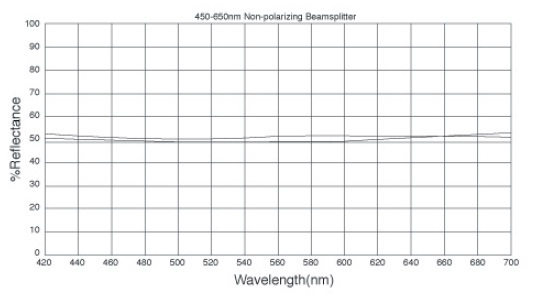

450-650 | T/R=48/48±5% ITs-TpI<5% IRs-RpI<5% | NPBS-VIS-01 | NPBS-VIS-02 |
650-900 | T/R=48/48±5% ITs-TpI<5% IRs-RpI<5% | NPBS-650-900-01 | NPBS-650-900-02 |
900-1200 | T/R=48/48±5% ITs-TpI<5% IRs-RpI<5% | NPBS-900-1200-01 | NPBS-900-1200-02 |
1200-1600 | T/R=48/48±5% ITs-TpI<5% IRs-RpI<5% | NPBS-1200-1600-01 | NPBS-1200-1600-02 |
